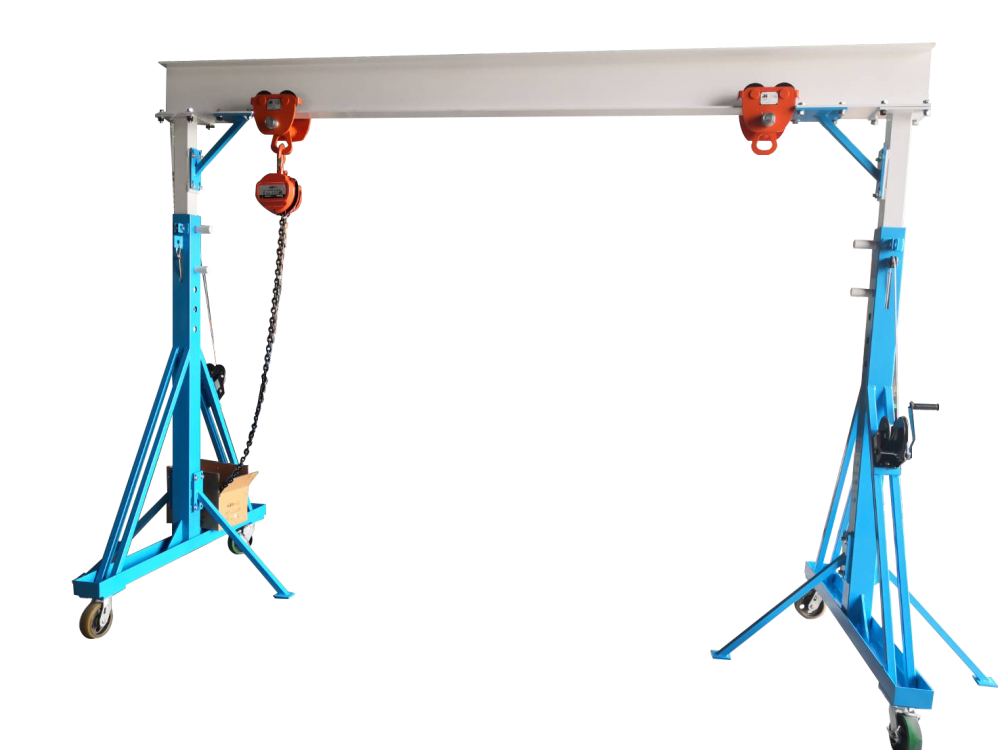

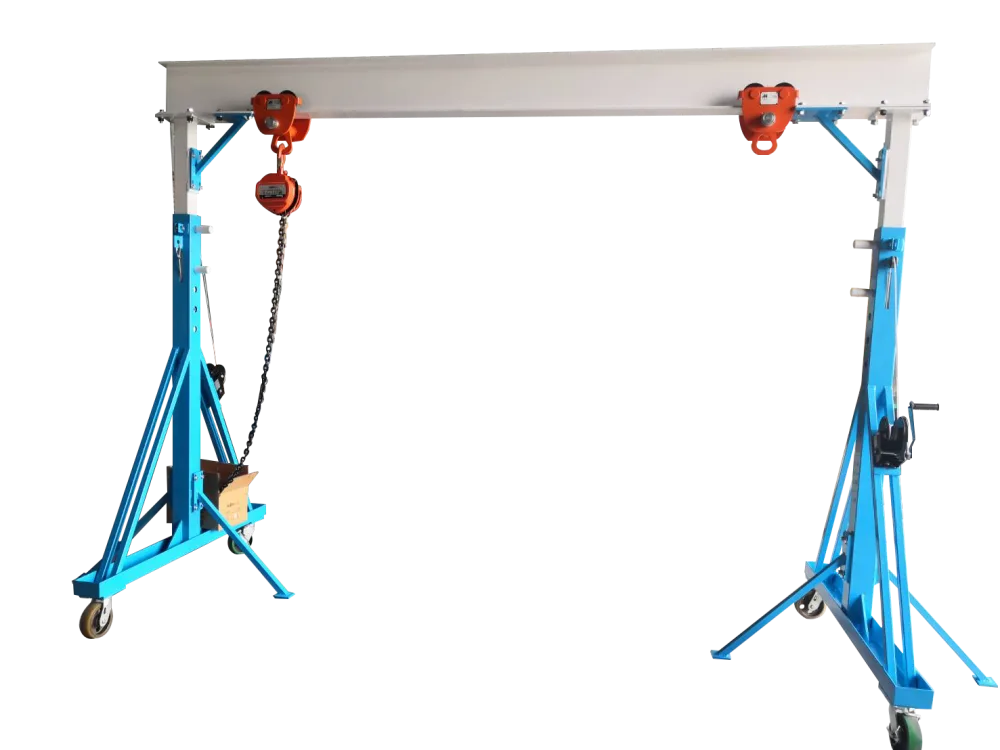

Adjustable Steel Gantry Crane Shop Lift
Description: Adjustable Steel Gantry Crane Shop Lift , Easy to assemble and disassemble, Easy to handle and move!
  • Easy to assemble and disassemble.
  • Easy to handle and move.
  • Suitable for Confined spaces, Explosion-proof space, Clean room, Factory and Mobile location.
  • Load optional: 500 kg, 1000kg, 1500kg, 2000kg
  • Chain Hoist optional : Electric , Manual
  • Design and manufacture in Taiwan.  The structure is structurally calculated and actual hoisting test, sturdy  and durable!


Adjustable Gantry Crane


Standard Parts:

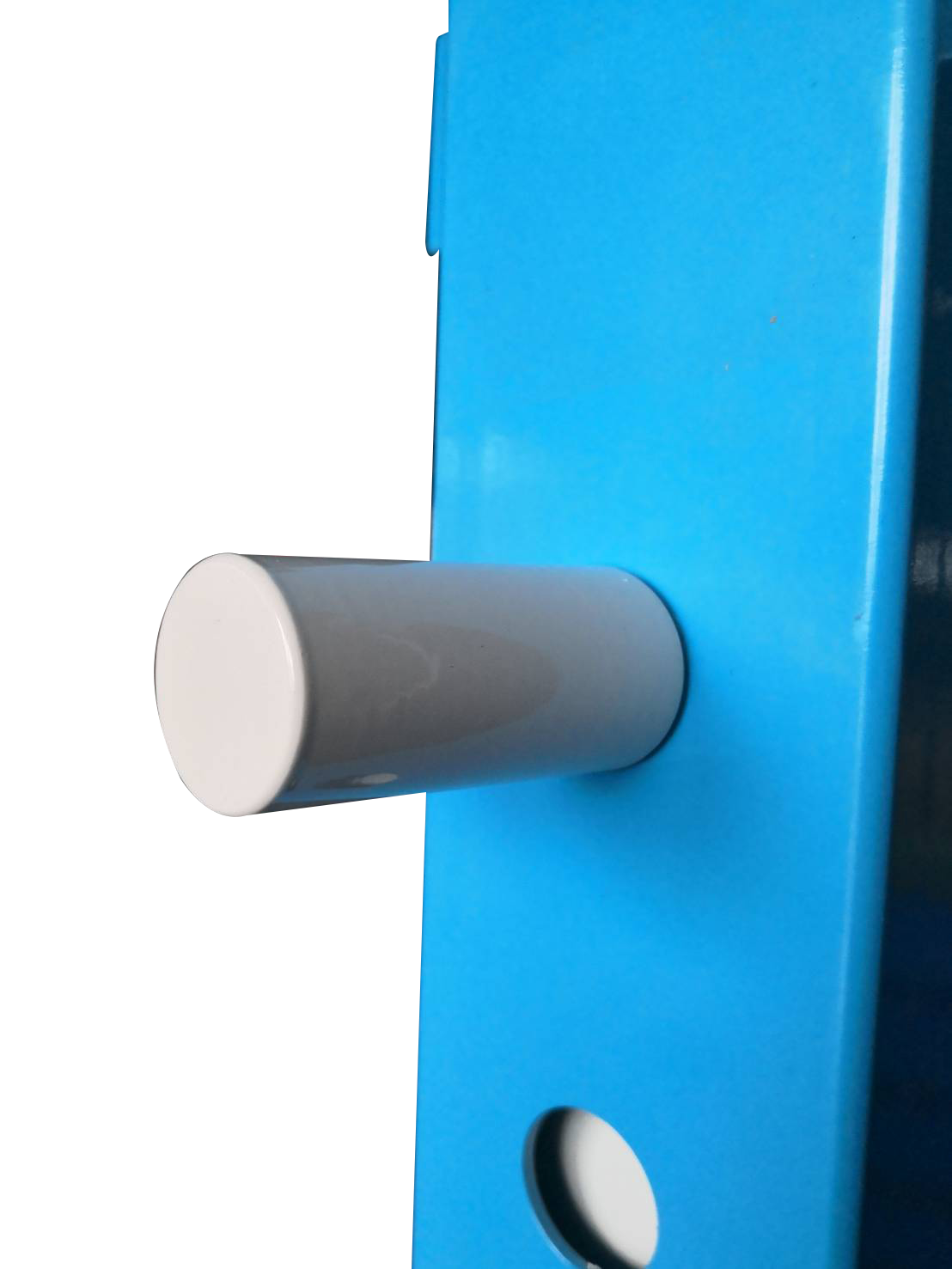

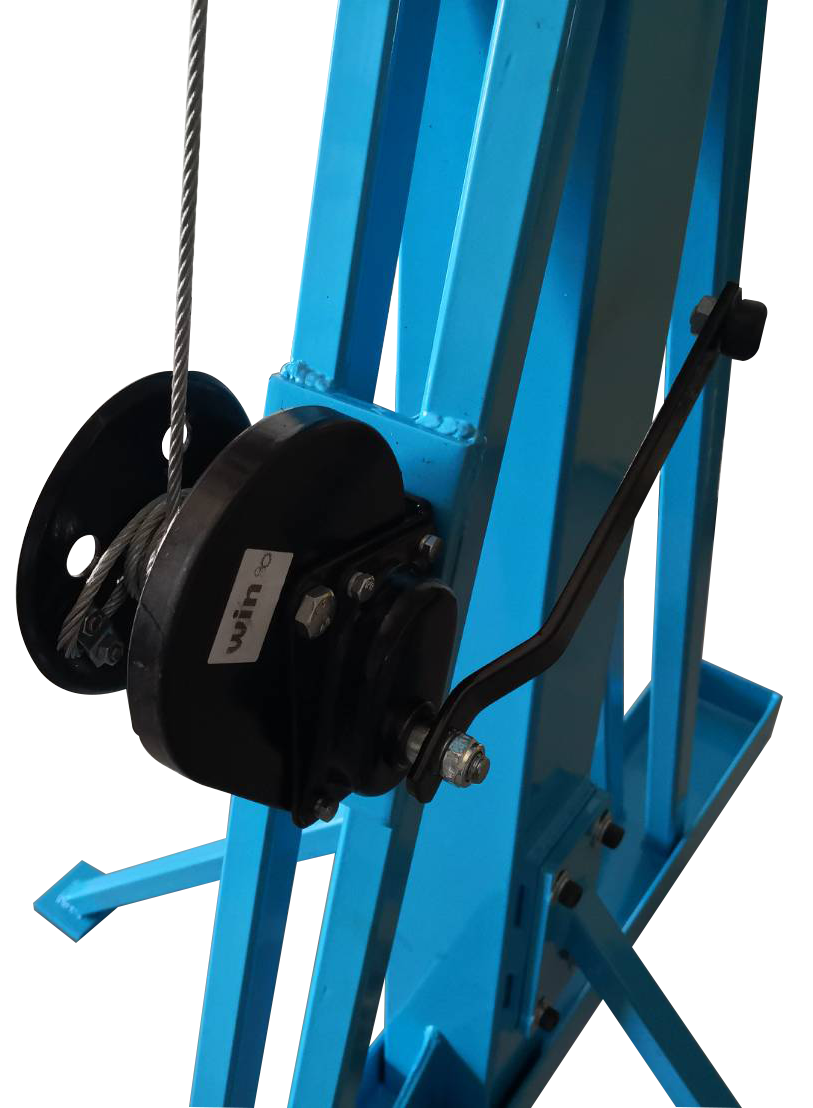

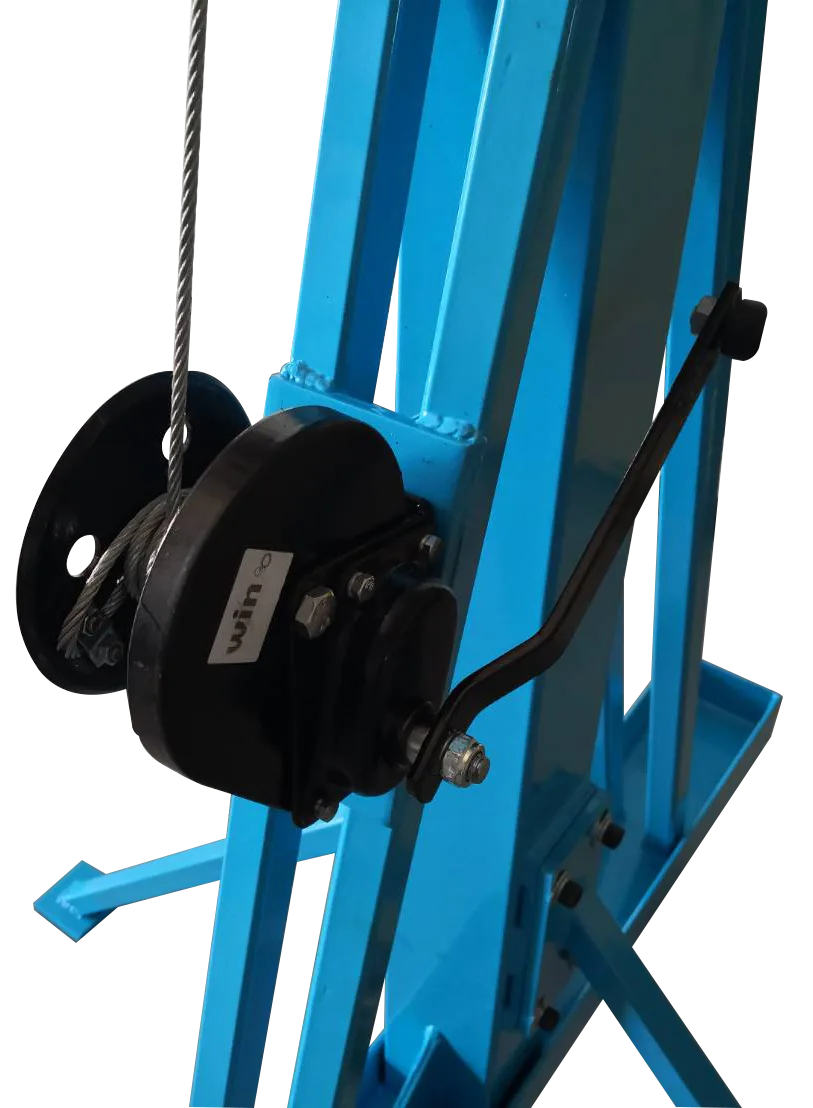

                   Manual hoist / Safety letch

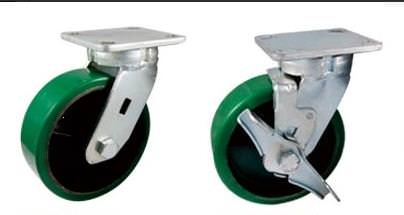

PU Wheel

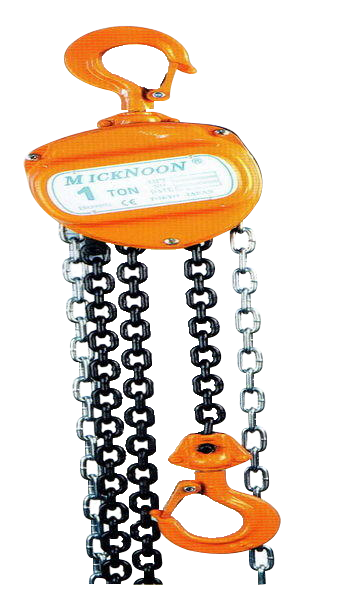

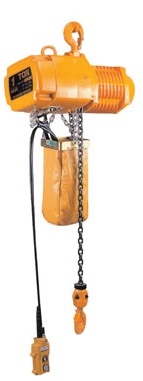

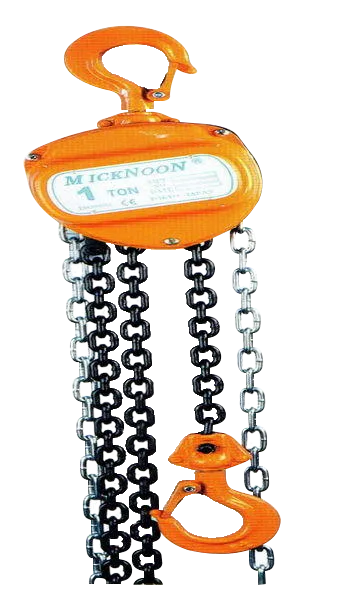

 Chain Hoist: Manual / Electric

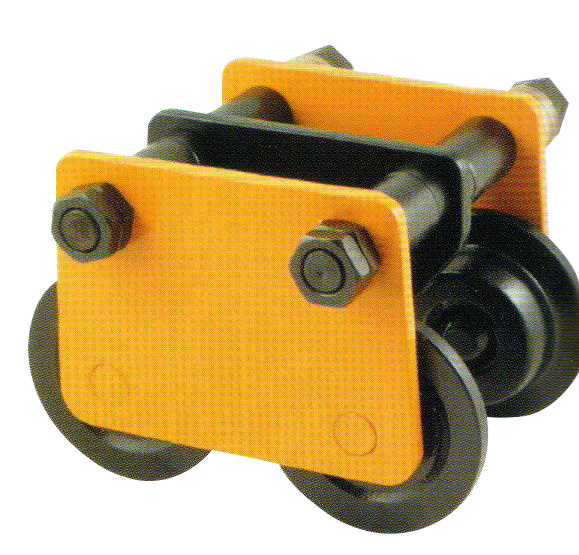

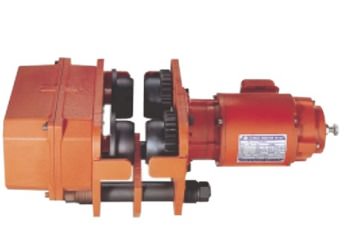

Trolley: Manual / Electric

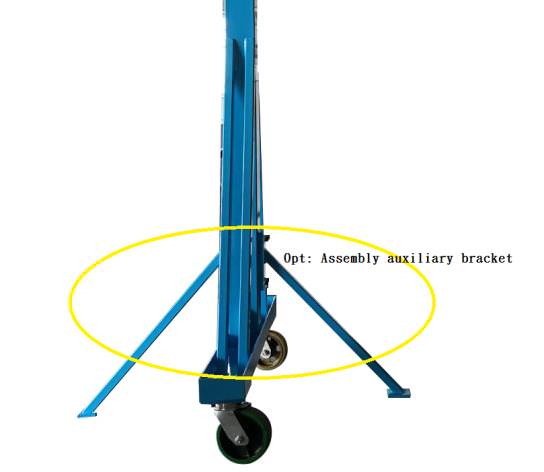

Assemble auxiliary bracket, Dismantled after assembly.

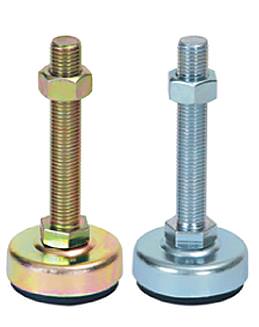

Level adjustment device.

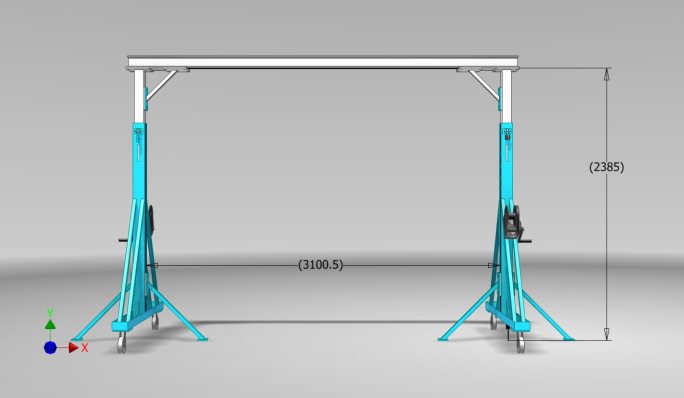

Max High: 3385mm (exclude beam.)

Width:3100.5mm (Exclude Column)

Min High: 2385mm (exclude beam.)

Width:3100.5mm (Exclude Column)

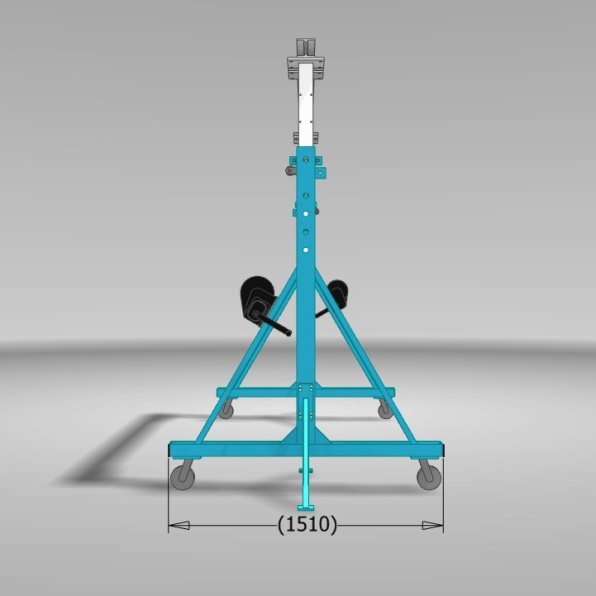

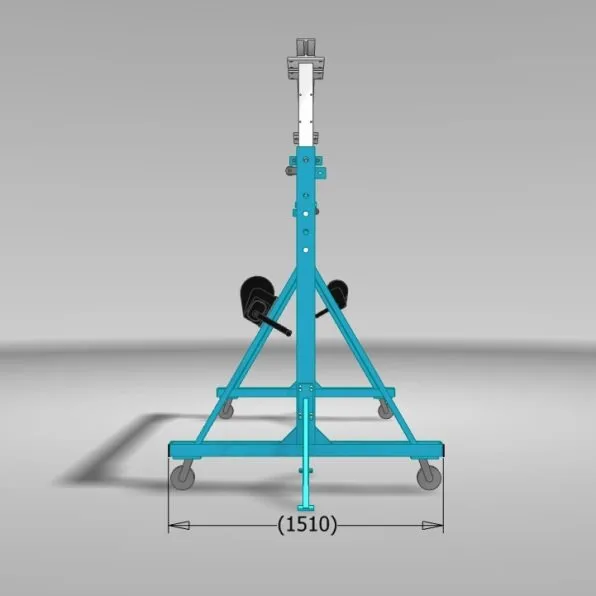

D: 1510mm

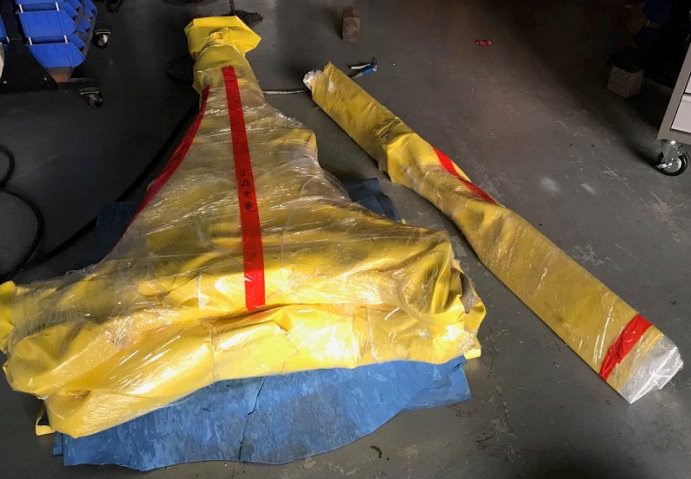

EVA Foam Packing




Item 0.5T 1T 1.5T 2T
Height adjustable 2385~3385mm 2385~3385mm 2385~3385mm 2385~3385mm
Inside width 3100mm 3100mm 3100mm 3100mm
Universal wheel 4” 6” 6” 6”
Net Size Estimation 3CBM 3CBM 3CBM 3CBM
